HDG Double End Threaded Studs M22 Hex Head Bolts and Nuts with Washers
1.Product Description
Double End Threaded Studs, also known as double-ended thread screws or double ended studs. Using to permalink connection for mechanical function and has double threaded end, without thread in the middle, which divide into rough and thin shank. Generally the double end stud bolts used for mining machinery, bridges, automobiles, motorcycles, boiler steel structure, head mast, large-span steel structure and large buildings etc. Stud bolts is some of the larger diameter bolt screw, may not have the head, such as studs. The most common form of double end stud bolts is threaded at both two ends and the middle unthreaded. Double end threaded stud are threaded for a nut on one end and threaded for insertion into a threaded hole on the other, they have a thread fit on the tap end. Double end threaded studs consist of a straight bar with the desired amount of thread on each end.The most typical type are anchor bolt, bolt or the like where a thicker connection is required while ordinary bolts couldn't achieved. The double end threaded stud is commonly use to connect with the main body of large equipment, which need to install accessories, such as mirrors, mechanical seal seat, deceleration racks etc. Screwing one enfd of the stud bolts into the body, installed the nut of the other side, as the attachment is frequent disassembly, the thread of the stud bolts will be worn or damaged easily, the double end stud bolts help the replacement to become more convenient. Also the stud bolts is for connecting a large thickness and long bolt is required and we use the double end stud bolts. To connecting slabs and unconvenient to use the hexagon bolt connections, such as concrete roof trusses, roof beams and other pieces of monorail beam suspension.
2. Specification
| Diameter | Pitch | Length | Thread Length(b) | Thread Length(b1) |
| M22 | 1.5mm | 120mm | 50mm | 44mm |
More details:
| Product Dimensions | M22 x 120mm |
| Item Weight | 440kg/ 1000 pieces |
| Standard | DIN835-1972 |
| Grade | Gr.10.9 |
| Free Sample | Available, only shipping need to be charged |
| Thread type | Double End Threaded |
| Advantages | High Tensile, Offer High Holding Power, Corrosion Resistance |
3.Application
The double end stud bolts is commonly use to connect with the main body of large equipment, which need to install accessories. Also the stud bolts is for connecting a large thickness and long bolt is required and we use the double end stud bolts. To connecting slabs and unconvenient to use the hexagon bolt connections, such as concrete roof trusses, roof beams and other pieces of monorail beam suspension. Designed for using in high-stress and high-strength applications. Hop dip galvanized offers corrosion resistance and protection.
4.Advantages
Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.
5.More pictures
Product Tags:
|
|

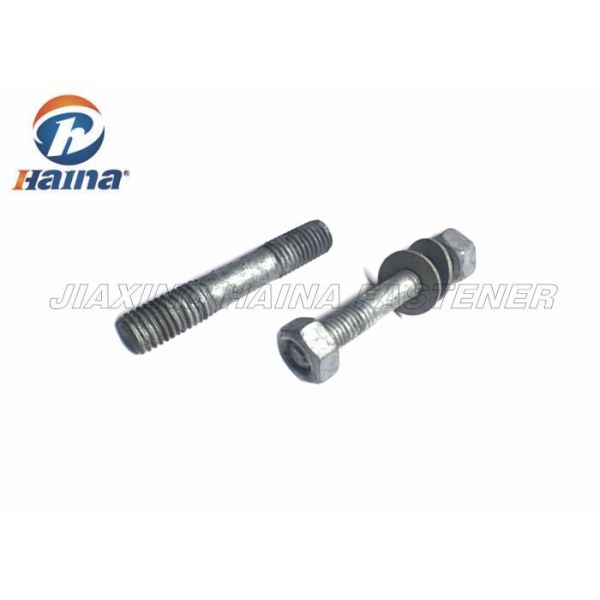

HDG Double End Threaded Studs M22 Hex Head Bolts and Nuts with Washers Images
|
